| Brand Name : | Hi-target |
| Certification : | CE |
| Model Number : | HD380 |
| Price : | $10/set |
| Delivery Time : | within 10 days after your full payment |
| Payment Terms : | T/T L/C Western Union |
| Supply Ability : | 1000set/month |

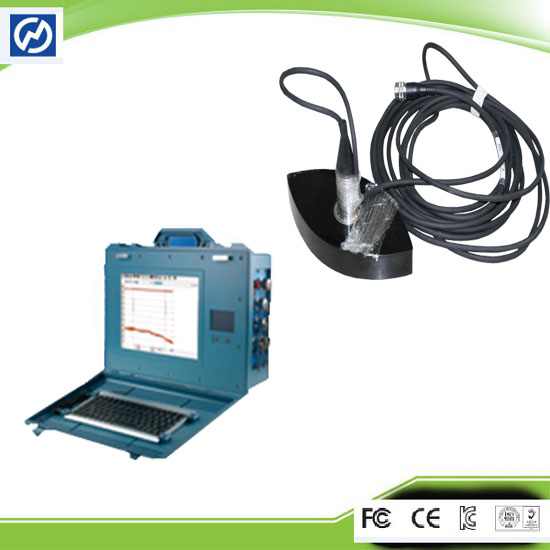

All-in-one Deep Sea Sweep System Multi-beam Echo Sounders
With advanced frequency conversion technology, HD-370 and HD-380 reduce noise caused by transducer and enhanced echo intensity. In addition, both the HD-370 and the HD-380 support different frequency transducers to meet the demands of differenthydrographic projects.Portable design, high-definition LCD screensand mass storage make field operations much more convenient.Preinstalled Hi-Sounder software reduces your software cost.
1.Currently the only adjustable high-frequency echo sounder
2. Apply the latest variable frequency technology in the world to reduce transducer buzz and surface noise, enhance echo strength.
3.VF technology provides HD-370 ability to configure with diverse frequency transducers to meet various requirements from different marine survey project.
4.Perfect TVG curve is designed according to characteristic of sonar transmission under water.
5.Optimize sounder capability and improve performance in shallow water.
6.HD-370 configures with high-brightness fine-resolution LCD screen and mass storage to support your convenient field survey.
| Model | HD380 Dual Frequency |
| Frequency | High: 100-750KHZ(Adjustable) Low: 10-50KHZ(Adjustable) |
| Transmission Power | 500W (200KHZ High frequency band) 1000W (20KHZ Low frequency band) |
| Bathymetric Range | 0.3m-600m (High frequency) 0.3m-2000m (Low frequency) |
| Depth Resolution | 0.1ft/0.01m |
| Accuracy | ±0.01m+0.1% of h( depth value) |
| Ping Rate | Up to 30Hz |
| Draft Range | 0.0m~15m |
| CPU | 1.6GHZ |
| Memory & Storage | 1G DDR2 & 4G storage |
| LCD Display | 12 inches, 1024X768 resolution, 1000cd/ m2 |
| I/O Interface | 2×RS-232 ports, 3×USB ports, 1×DC power port, 2×TX ports (for transducer) |
| Power Supply | DC 9~36V / AC 220V |
| Operation Temperature | below 30°C to 60°C, non-condensing |
| Dimension | 44mmL X 341mmW X 164mmH |
| Weight | 9 kg |
Working Station Echoing Mode
Hi-Target the third generation of echo sounder is integrated with high stable industrial controlling computer, echo sounder, depth measuring software and marine surveying software. Only need to connect to GPS receiver and 12V DC battery can launch survey work, greatly simply water depth survey work.
The Echosounding Software adopts entirely automatic design, setting parameter in advance, only boot-strap can start surveying. Sounder data is intuitively displayed by figure. Echogram is saved in digital encrypted files, convenient for data long time storage, replay, inquiry and print
