| Brand Name : | Hi-Target |
| Model Number : | V30 |
| Certification : | CE FC |
| Price : | $1-$10 |
| Delivery Time : | within 10 days after your full payment |
| Payment Terms : | T/T L/C Western Union |
| Supply Ability : | 300set/per week |
Surveying Tools Precise Positioning China RTK GPS
It is designed to meet high quality standards at an affordable price. It is outstanding in its class, with a rugged design and user-friendly functions.
V30 GPS is equipped with a smart speaker guiding the whole operation.Multi one-button functions make fieldwork easier,
such as auto base setup by one button,The rover can get fix solution once it is turned on.
Seamless operation in CORS system,Built-in GPRS/GSM/3G module ensures that the V30 works perfectly with network RTK positioning.
IP67 dust/water protection. Withstands 3-meter natural fall onto concrete.
Rapid tracking and perfect avoidance or reduction of obstruction and multipath effect to ensure superior positioning capability.
The picture ofChina RTK GPS
What's the advantage of ourChina RTK GPS?
Independence: No external cable or battery is needed, so you can put it where you want.
Compatibility: It can both directly transmit and forward in same-frequency or pilot-frequency
Multi-channel: It has 116 UHF channels, and supports custom channels.
Power: 5W/10W/20W/35W adjustable
Distance:Its max working distance is 50 km, which depends on the setting altitude.
Resistant features: waterproof, dustproof, broken-resistant performance.Intelligentialized self-diagnosis function
Technical Parameters | ||||
Measurements | 220 tracking channels | |||
Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology | ||||
High precision multiple correlator for GNSS pseudo range measurements | ||||
Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response | ||||
Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth | ||||
Signal-to-Noise ratios reported in dB-Hz | ||||
Proven Pacific Crest low elevation tracking technology | ||||
Satellite signals tracked simultaneously | GPS: Simultaneous L1C/A, L2C, L2E, L5 | |||
GLONASS: Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P | ||||
SBAS: Simultaneous L1 C/A, L5 | ||||
Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC | ||||
BDS: B1, B2 | ||||
QZSS: L1 C/A, L1 SAIF, L2C, L5 | ||||
Positioning Accuracy | Static and Fast Static GNSS surveying | Horizontal: 2.5mm+0.5ppm RMS Vertical: 5mm+0.5ppm RMS | ||
Stop & Go GNSS surveying | Horizontal: 1cm+1ppm RMS Vertical: 2.5cm+1ppm RMS Initialization time: typically 10 minutes for base while 5 minutes for rover Initialization reliability: typically > 99.9% | |||
Realtime Kinematic(RTK) surveying | Horizontal: 8mm+1ppm RMS Vertical: 15mm+1ppm RMS Initialization time: typically < 8 seconds Initialization reliability: typically > 99.9% | |||
Code Differential GNSS positioning | Horizontal: 25cm+1ppm RMS Vertical: 50cm+1ppm RMS SBAS[iv]:0.50mHorizontal,0.85m Vertical | |||
Hardware | Physical | 1.Dimensions (W x H): 19.50cm x 10.40cm(7.68 in x 4.09 in) 2.Weight: 1.3kg (2.86lb) with internal battery, internal radio, standard UHF antenna 3.Operating temperature: -45℃to +65℃(-49℉to +149℉) 4.Storage temperature: -55℃to +85℃(-67℉to +185℉) 5.Humidity: 100%, considering 6.Water/dustproof: IP67 dustproof, protected from temporary 7.immersion to depth of 1m (3.28ft). 8.Shock and Vibration: Designed to survive a 3m(9.84ft) natural fall onto concrete. 9.Storage: 64M | ||
Electrical | 1.Power 6V to 28V DC external power input 2.Power consumption 2.5W 3.Automatic Switching between internal power and external power 4.Rechargeable, removable 7.4V, 5000mAh Lithium-Ion battery in internal battery compartment 5.Internal battery life, Static 13 - 15 hours, RTK Rover (UHF/GPRS/3G) 10 - 12 hours and RTK Base 8 - 10 hours | |||
Communication | GPRS/GSM or 3G | Fully integrated, fully sealed internal GPRS/GSM or 3G Network RTK (via CORS) range20-50km | |
HI-TARGET internal UHF radio (standard) | Frequency: 460 MHz with 116 channels Transmitting Power: 0.1W, 1W, 2W adjustable Transmitting Speed: Up to 19.2Kbps Working Range: 3~5Km typical, 8~10km optimal | ||
PacificCrest XDL micro Internal UHF Radio (Optional) | Frequency: 403~473 MHz Transmitting Power: 0.5W, 1.0W, 2.0W adjustable Transmitting Speed: Up to 19.2Kbps Support most of radio communication protocol Working Range: 3~5km typical, 8~10km optimal | ||
HI-TARGET External UHF radio (standard) | Frequency: 460 MHz with 116 channels Transmitting Power: 5W, 10W, 20W, 30W adjustable Transmitting Speed: Up to 19.2Kbps Working Range: 8~10Km typical, 15~20km optimal | ||
Pacific Crest ADL Vantage Pro External UHF radio (Optional) | Frequency: 390~430 MHz or 430~470 MHz Transmitting Power: 4W to 35W adjustable Transmitting Speed: Up to 19.2Kbps Support most of radio communication protocol Working Range: 8~10Km typical, 15~20km optimal | ||

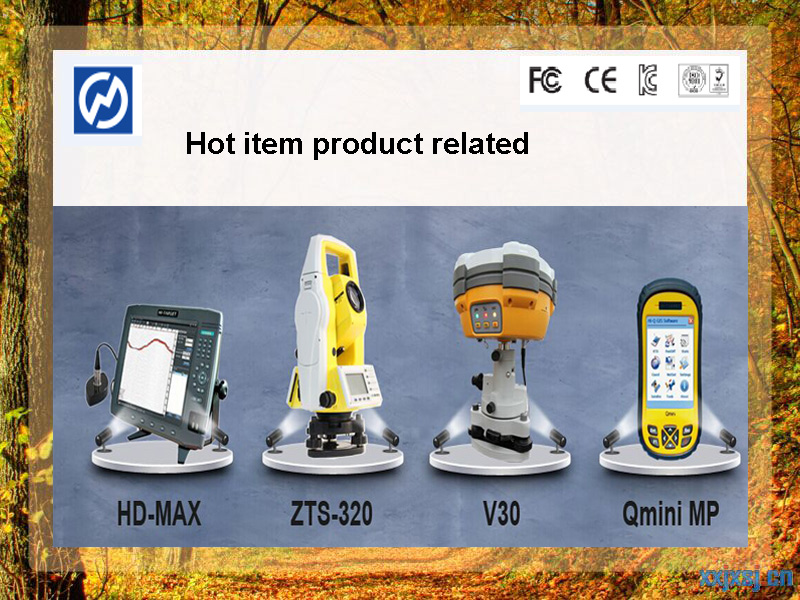

What's our related product for your option?
Activities display
1.We have more than6 yearsof developed sales chanels inmany countries.
2.Our company arehighly acclaimed and favorablyaccepted by numerous customers and possessed of the right to import and export.
3.We prominent emphasize the humanconcern,respect,rustin company management,as we as stimulate staff'ssense of responsibilityandthe sense of mission.
4.Inspected by the Inspection Institution ofBureau Veritas Certification.
5.100% QCinspection Before Shippment.
6.CE/FClisted,competitve price.effective delivery.
Trade Terms
1.Payment:T/T,Western Union,L/C
2. Delivery Time:within 10 working days
3.Warranty:1 Year
4.Packing information:carton cases with standard exporting package
What is our packing way?
Q1.Are you trading company or manufacturer?
We are absolutelyprofessional manufacturer, and our factory mainly produceEcho Sounder,Total Station,GIS & MappingandGPSetc.We provide comprehensive solution to many fields like Construction
Layout,Mining Survey, Waters Measuring etc.Our products have been
exported to more than50 countriesof Asia, South America, Africa, and get a good reputation in the
world.
Q2.Do you have after service?
Yes, we havespecial service teamwhich will offer you professional guidance. If you need, we can
send our engineer to your worksite and provid the training for your
staff.
Q3.Is there cheap shipping cost to import to our country?
A1: For small order,expresswill be best.And for bulk order,sea ship wayis best but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q4:Can we get support if we have our own market position?
A2: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
|
|
