HZ-130YY Water Well Drilling Rig

HZ-130YY shallow well drilling rig is mainly used for geological general investigation and exploration,road and tall building foundation exploration,kinds of hole in concrete structure,river levees,subgrade grounting hole drilling and direct grouting,civil wells and earth temperature central air-conditioner etc

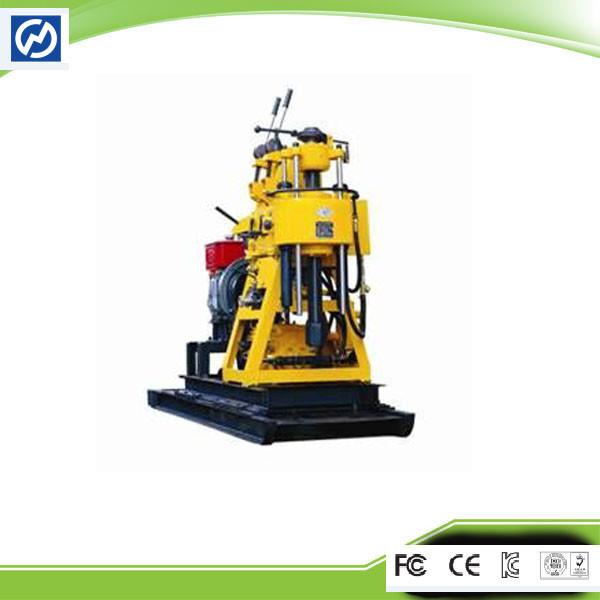

The picture of Water Well Drilling Rig

What's the feature of our Water Well Drilling Rig?

1.Keeping bracket is installed on the hoist to form a double wheel support structure,able to withstand strong blow

2.Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and toher complex geological conditions

3.The mechine is equipped with national patent technology--taper clutch,with characteristics of strong transmission torque,easy operation and free maintenace

4.53*59 drilling rod adopted,high rigidity and strong delivery torque.

What's the technical parameter of our Water Well Drilling Rig

Unity machine parameter

Drilling depth:10-130m

Maximum open hole caliber :260mm

End hole caliber:75mm

Drill rod caliber:50mm

Drilling angle :75-90 degree

Drill weight(not include power):510-560kg

Unity machine dimensions:2.5*1*1.3m 2.5*0.9*1.3m

Spindle

Spindle speed:142,285,570r/min

Spindle stroke:450mm

Hoist

Max. single line hoisting capacity: 960kg

Single line lifting speed:0.41,0.82,1.64m/s

Tightrope caliber:27m

Mud pump of HZ-130YY model drilling rig

Type: horizontal single urn twin-action

What's the accessories of Water Well Drilling Rig

Trade Terms

1.Payment:T/T,Western Union,L/C

2. Delivery Time:within 10 week working days

3.Warranty:1 Year

4.Packing information:wooden cases with standard exporting package

Our packing way for your reference
