XYD-130 Crawler-mounted Water Well Drilling Rig

HZ-130YY shallow well drilling rig is mainly used for geological general investigation and exploration,road and tall building foundation exploration,kinds of hole in concrete structure,river levees,subgrade grounting hole drilling and direct grouting,civil wells and earth temperature central air-conditioner etc

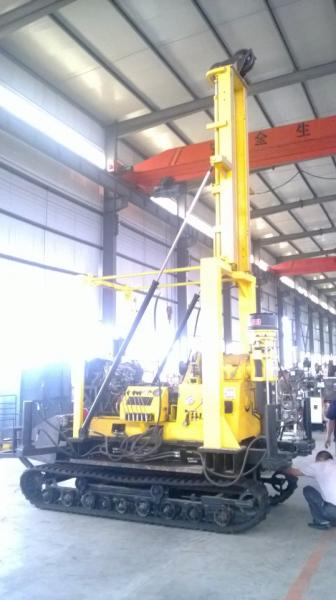

The picture of Crawler-mounted Drilling Rig

What's the feature of our Crawler-mounted Drilling Rig?

1.The machine is equipped with crawler chassis device,easy to move with fast speed.

2.Hydraulic oil pressure feed device,improves drilling efficiency.

3.Pressure gauge display the condition of the bottom of the drill hole.

4.Drill mast controlled by hydraulic cylinder,improve the efficiency.

5.Diesel engine adopt the electric starter to reduce the labor intensity.

What's the technical parameter of our Crawler-mounted Drilling Rig

Unity machine parameter

Drilling depth:10-130m

Maximum open hole caliber :260mm

End hole caliber:75mm

Drill rod caliber:50mm

Drilling angle :75-90 degree

Drill weight(not include power):510-560kg

Unity machine dimensions:2.5*1*1.3m 2.5*0.9*1.3m

Spindle

Spindle speed:142,285,570r/min

Spindle stroke:450mm

Hoist

Max. single line hoisting capacity: 960kg

Single line lifting speed:0.41,0.82,1.64m/s

Tightrope caliber:27m

Mud pump of HZ-130YY model drilling rig

Type: horizontal single urn twin-action

What's the accessories of Crawler-mounted Drilling Rig

Trade Terms

1.Payment:T/T,Western Union,L/C

2. Delivery Time:within 10 week working days

3.Warranty:1 Year

4.Packing information:wooden cases with standard exporting package

Our packing way for your reference

Chongqing Gold M& E Equipment Co., Ltd is specializes in manufacturing and development of geophysical
equipment such as Resistivity Meter, IP instrument, Resistivity Imaging, Seismic Instrument, Magnetic Instrument, Borehole Camera, Borehole Logger,Drilling
Equipment and Survey Instrument.
