We are ready for all challenge!
9 Years
| Ask Lasest Price | |
| Brand Name : | GOLD |
| Model Number : | MGY-80 |
| Certification : | CE |
| Price : | 20000 |
| Delivery Time : | 10 week working days |
| Payment Terms : | T/T L/C Western Union |
| Supply Ability : | 100 set /month |
Coring Down-hole Hammer Adopted Borehole Drilling Rig for Hydrography Well
MGY-80 hydraulic anchoring drilling rig is mainly used in treating the disaster of landslide, rockslide so on, also used in rock anchoring, anchoring bar, strengthening retaining wall, supporting in deep foundation pit, mini-pile hole drilling, hydrography well drilling and high pressure jet-grouting for hydroelectric powerstation, communication, energy and capital construction.

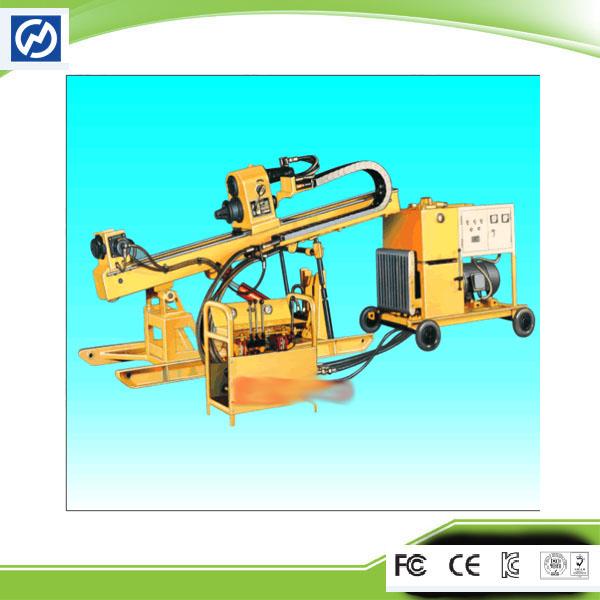

The picture of Cheap Water Well Drilling Rig
What's the feature of our Cheap Water Well Drilling Rig?
● Use hydraulic transmission, the body is separated from power pack, operation desk separately mounted, to lighten the drill body
● Main hydraulic components such as oil motor, oil pump, quick joint so on are imported from US to make the drilling machine stable and reliable
● Equipped with hydraulic holder and hand powered unscrewer, to untighen the drill rod easily
● Good detachability, easy moving, special for high place work; simple design, compact arrangement, easy operation
● The top-head has large torque, wide range of speed, big pull force
What is the technical parameter of ourCheap Water Well Drilling Rig?
Drilling capacity | Hole dia Φ110mm,depth 100m | ||
Hole dia Φ200mm,depth 80m | |||
Type of hydraulic power pack | Electric motor,varibale oil pump | ||
Hydraulic system rated pressure(Mpa) | 20 | ||
Top-head speeds(r/min) | Series I | 0---140 | |
Series II | 0---50 | ||
Top-head torque (N.m) | Series I | 1400 | |
Series II | 3500 | ||
Lift speed(m/s) | 0—-0.12 | ||
Feed speed (m/s) | 0---0.19 | ||
Max pull force(N) | 50000 | ||
Max feed force (N) | 34000 | ||
Max stroke (mm) | 1800 | ||
Drilling angle range(°) | -10---90 | ||
Overal dimension of drill body(L*W*H)(mm)/Weight(Kg) | 3270*1100*1425/1100 | ||
Dimension of power pack(L*W*H)mm/weight(kg) | 1555*1255*1335/500 | ||
Dimension of operation desk(L*W*H)mm/weight(kg) | 700*380*750*110 | ||
Power unit(electric motor) | model | Y1802M-2 | |
Power(kw) | 22 | ||
Speed(r/min) | 2950 | ||
What's the accessories ofCheap Water Well Drilling Rig?
Activities Display
Why choose us?1.We have more than6 yearsof developed sales chanels inmany countries.
2.Our company arehighly acclaimed and favorablyaccepted by numerous customers and possessed of the right to import and export.
3.We prominent emphasize the humanconcern,respect,rustin company management,as we as stimulate staff'ssense of responsibilityandthe sense of mission.
4.Inspected by the Inspection Institution ofBureau Veritas Certification.
5.100% QCinspection Before Shippment.
6.CE/FClisted,competitve price.effective delivery.
Trade Terms
1.Payment:T/T,Western Union,L/C
2. Delivery Time:within 10 week working days
3.Warranty:1 Year
4.Packing information:wooden cases with standard exporting package

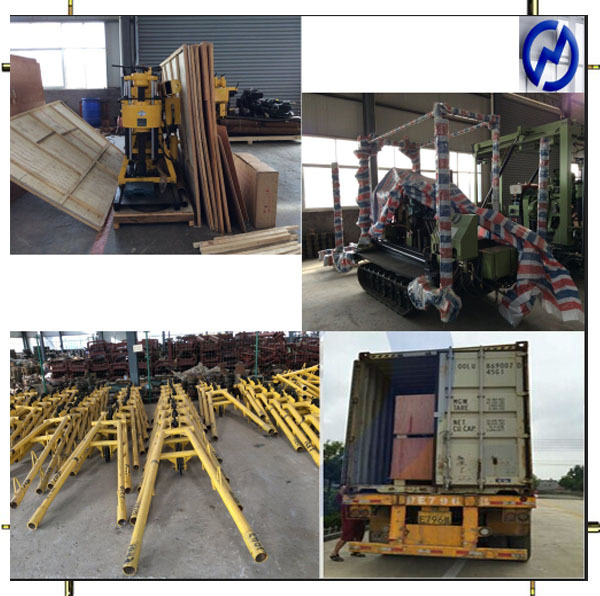

Our packing way for your reference
Q1.Are you trading company or manufacturer?
We are absolutely professional manufacturer, and our factory mainly producewater well drilling rig,core drilling rig,piling rig, etc.
We provide comprehensive solution to many fields like geological survey, mining industry, electric power etc.
Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
.
Q2.Do you have after service?
Yes, we havespecial service teamwhich will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
Q3.Is there cheap shipping cost to import to our country?
A1:Sea ship wayis best for drilling rig transportation
Q4:Can we get support if we have our own market position?
A2: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
|
|
