Hot Selling Auto Levelling Professional Industrial Deep Well Camera

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd
Contact Now
    Buy cheap Hot Selling Auto Levelling Professional Industrial Deep Well Camera from wholesalers

    Buy cheap Hot Selling Auto Levelling Professional Industrial Deep Well Camera from wholesalers
    • Buy cheap Hot Selling Auto Levelling Professional Industrial Deep Well Camera from wholesalers

    Hot Selling Auto Levelling Professional Industrial Deep Well Camera

    Ask Lasest Price
    Brand Name : GOLD
    Model Number : YYGD
    Certification : ISO CE
    Price : 10-50
    Delivery Time : Within 10 working days
    Payment Terms : T/T,Western Union,L/C
    Supply Ability : 1000 sets/quater
    • Product Details
    • Company Profile

    Hot Selling Auto Levelling Professional Industrial Deep Well Camera

    Hot Selling Auto Levelling Professional Industrial Deep Well Camera

    YYGD Borehole Inspection Television adopts reflective ax icon lens to take 360° hole wall images, image acquisition and processing by means of computer to form a continuous hole wall developed image. The whole wall image are developed following the order N→E→S→W→N. The longitude connections of images are jointed as per the order of depth, thus the overall hole-wall image is fully understood at a glance.


    Data Processing Function

    · Browsing, real-time display of position and depth

    · Marking of images and literal texts

    · Making of interpretation lines on images

    · For convolution rotation, see core graph

    · Calculate the inclination of stratum construction

    · Measure the thickness of rock stratum and the width of cracks

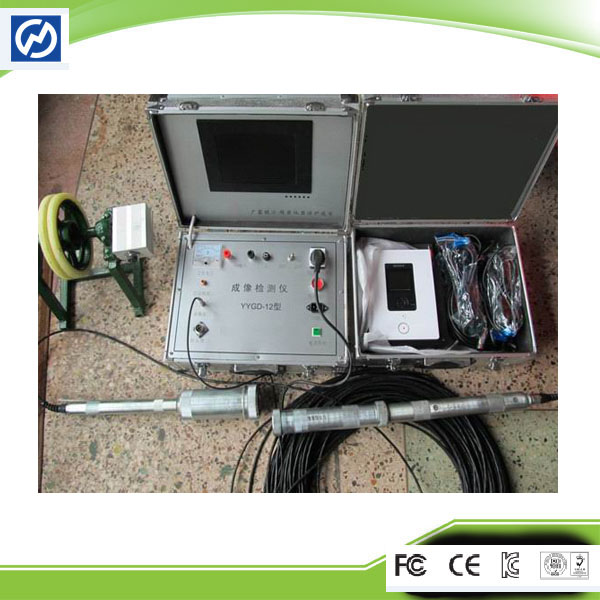

    The picture ofDeep Well Camera

    Hot Selling Auto Levelling Professional Industrial Deep Well Camera


    Technical Parameter


    • 1Vp-p PAL TV Signal 75Ω Video Output
    • 1Vp-p PAL TV Signal 75Ω Video Output
    • Definition: 450TVL
    • Viewing Angle: 360° Hole Wall
    • Lighting: Built-in K3200° Trichromatic Lighting Ring
    • Probe Diameter: φ70mm
    • Adaptation Aperture: φ75~φ300mm
    • Power Supply: AC220V±10% 50Hz
    • Software Operating Environment: Win2000/XP
    • Adapted Hole Depth: 0~300mm Clear Water Hole or Dry Hole

    What is the features ofDeep Well Camera?

    1 Super high resolution color picture
    2 Low light operation
    3 Led underwater light
    4 Stainless steel housing
    5 Military grade watertightness cable
    6 Ability to attach up to deep place and stand large pressure of water.
