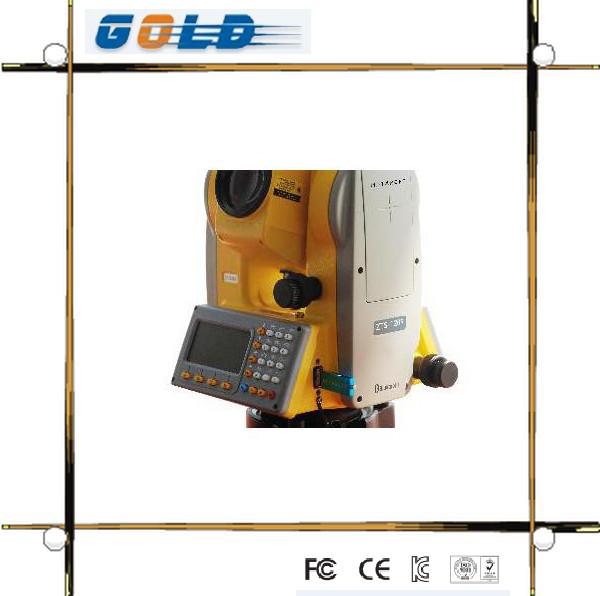

China Made TP Sensor Land Surveying Total Station On Sale

China Made TP Sensor Land Surveying Total Station On Sale

The ZTS-320/R is configured with advanced dual-axis compensatorfor auto error elimination and auto accuracy compensation,Diversified data transfer options such as SD card, USB pen drive, mini-B interface

This kind of Hi-Target high precision total station is widely used in surveying and mapping,engineering construction,it's popular in the market for it's high precision,good quality,competitive price,It can help customers to do most of the work in surveying and mapping.

As for Hi-Target brand Engineering Construction Total Station,it's a yonger products,full of creative and thoughtful consideration.It's really a competitive prodcts compete with other brand.

Dual-axia Compensation

The ZTS-320/R is configured with advanced dual-axis compensator for auto error elimination and auto accuracy compensation.

The absolute encoding disk ensures high accuracy,efficiency and stable performance,Initialization is needless but to measure the angle immediately as the ZTS-320/R is turned on.

The azimuth information won't be missed even the ZTS-320/R is power-off unexpectedly.

The STM32 MCU based on ARM Cortex™-M processor enables the ZTS-320/R has extra high processing speed and low-power consumption.

The Bluetooth wireless technology makes ZTS-320/R accessible to any data collector for real-time communication.

The third party field software such as Carlson SurvCE is fully compatible with the ZTS-320/R.

Diversified data transfer options such as SD card,USB pen drive,mini-B interface.

The display and keyboard with backlight for working in the dark.

Support diagonal eyepiece for observations at steep line of sight.

The proprietary HI-TARGET Calibration software is accessible for real-time diagnosis to ensure trouble-free operation.

The proprietary HI-TARGET data transfer software supports different type of output data format,

which can be used in AutoCAD or other brands' post processing software.

Model	ZTS320R
Angle Measurement
Measurement Method	Absolute Encoding
Minimum Readout	1"/5"/10"
Angle Accuracy	2″
Distance measurement(ZTS-320R with reflector)
Single prism	3000m
Three Prisms	6000M
Reflective Sheet	800m
Accuracy	2mm+2ppm
Measuring time(Fine/Quick/Tracking)	1.5s/1s/0.5s
Distance measurement(ZTS-320R reflectorless)
Reflectorless Range	350m
Single Prism	>7500m
Accuracy	3mm+2ppm
Measuring time	1.5s
Telescope
Magnification	30X
Field of View	1°30′
Minimum Focusing Distance	1.5m
Reticle	Illuminated
Compensator
System	Single-axis liquid tilt sensor/Dual-axis (optional)
Working Range	±3′
Setting Accuracy	1″
Communication
Bluetooth	Optional
Interface	Standard RS232,SD card,USB pen drive,mini-B
Internal Data Memory	Approx. 20,000 points
Data Format	ASCII
Operation
Operation system	Real-time Operation System
Display	High resolution backlight black and white display with contrast adjustment/
	Graphics: 192x96 pixels
	Character: 6 lines x 25 characters
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Laser plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Power supply
Battery Type	Rechargeable Li-ion battery
Voltage/Capacity	ZBA-400: 7.4V (DC) / 3000mAh
Operating time with ZBA-400	Optimal 16 hours / 10 hours(typical)
Measuring times	Approx 12000 times
Weight
Weight (Incl.Battery & Tribrach)	Approx 5.5kg
Environmental
Operating temperature	-20°C~50°C
Storage temperature	-40°C~70°C
Dust &Water Proof (IEC60529 Standard)/Humidity	IP65, 95%, non-condensing
