    Laser Level Reflectorless Construction Surveying Equipment

    Ask Lasest Price
    Brand Name : Hi-target
    Certification : CE FC
    Model Number : HTS-220R
    Price : $10/set
    Delivery Time : within 10 days after your full payment
    Payment Terms : T/T L/C Western Union
    Supply Ability : 1000set/month
    • Product Details
    • Company Profile

    Laser Level Reflectorless Construction Surveying Equipment

    Laser Level Reflectorless Construction Surveying Equipment

    Compact and Lightweight Designed, easy to carry and setup. With powerful measurement module, Stable Dual-axis Compensation system, and Intelligent Calibration Software, HTS-360R improves the speed and distance of measurement efficiently. Using STM32 architecture and high-grade dustproof and waterproof structure design, Comprehensively enhance the overall performance of HTS-360R.






    advantages logo.png

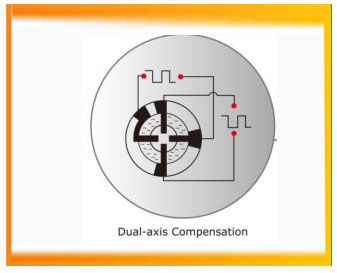

    dual-axis compensation.jpg

    The HTS-220/R is configured with advanced dual-axis compensatorfor auto error elimination and auto accuracy compensation.

    asolute encoding.jpg

    The absolute encoding disk ensures high accuracy, efficiency and stable performance. Initialization is needless but to measure the angle immediately as the HTS-220/R is turned on. The azimuth information won’t be missed even the HTS-220/R is power-off unexpectedly.

    high-performance MCU.jpg

    The STM32 MCU based on ARM Cortex™-M processor enables the HTS-220/R has extra high processing speed and low-power consumption.


    The Bluetooth wireless technology makes HTS-220/R accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCE is fully compatible with the HTS-220/R.

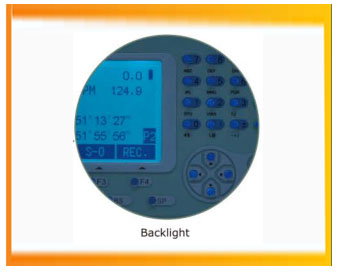

    The display and keyboard with backlight for working in the dark.

    diagonal eyepiece.jpg

    Support diagonal eyepiece for observations at steep line of sight.

    calibration software.jpg

    The proprietary HI-TARGET Calibration software is accessible for real-time diagnosis to ensure trouble-free operation

    data transfer software.jpg

    The proprietary HI-TARGET data transfer software supports different type of output data format, which can be used in AutoCAD or other brands’ post processing software.

    specification logo.png


    ModelHTS-220R
    Angle Measurement
    Measurement MethodAbsolute Encoding
    Minimum Readout1/5/10″(0.3mgon/1.5mgon/3mgon)adjustable
    Angle Accuracy2″
    Distance measurement(HTS-220 with reflector)
    Single prism3000m
    Three Prisms6000m
    Reflective Sheet800m
    Accuracy2mm+2ppm
    Measuring time(Fine/Quick/Tracking)1.5s / 1s / 0.5s
    Distance Measurement(HTS-220R reflectorless)
    Reflectorless Range350m
    Single Prism>7500m
    Accuracy3mm+2ppm
    Measuring time1.5s
    Telescope
    Magnification30X
    Field of View1°30′
    Minimum Focusing Distance1.5m
    ReticleIlluminated
    Compensator
    SystemSingle-axis liquid tilt sensor/Dual-axis (optional)
    Working Range±3′
    Setting Accuracy1″
    Communication
    BluetoothOptional
    InterfaceStandard RS232,SD card,USB pen drive,mini-B
    Internal Data MemoryApprox. 20,000 points
    Data FormatASCII
    Operation
    Operation systemReal-time Operation System
    DisplayHigh resolution backlight black and white display with contrast adjustment/
    Graphics: 280 x 160 pixels
    Character: 6 lines x 25 characters
    Keyboard2 sides Alphanumeric backlit crystal keyboard
    Laser plummet
    TypeLaser point, 4 brightness levels adjustment / Optical plummet (optional)
    Centering Accuracy1 mm at 1.5m instrument height
    Power supply
    Battery TypeRechargeable Li-ion battery
    Voltage/CapacityZBA-400: 7.4V (DC) / 3000mAh
    Operating time with ZBA-400Optimal 16 hours5 / 10 hours(typical)
    Measuring timesApprox 12000 times
    Weight
    Weight (Incl.Battery & Tribrach)Approx 5.5kg
    Environmental
    Operating temperaturebelow 20°C to above 50°C
    Storage temperaturebelow 40°C to above 70°C
    Dust &Water Proof (IEC60529 Standard)/HumidityIP65, 95%, non-condensing
