    Peg-top Wireless Large-bored Mechanical Inclinometer

    Ask Lasest Price
    Brand Name : GOLD
    Certification :
    Model Number : GDZ-2
    Price : 10-50
    Delivery Time : Within 10 working days
    Payment Terms : T/T,Western Union,L/C
    Supply Ability : 1000 sets/quater
    • Product Details
    • Company Profile

    Peg-top Wireless Large-bored Mechanical Inclinometer

    Peg-top Wireless Large-bored Mechanical Inclinometer


    Main Applications and Features

    The instrument is newly developed device to determine slope of horizontal borehole. It adopts a high precision sensor of new type and computer techniques, so its performance is better than general inclination measurement instrument. It has been widely used to determine horizontal borehole in the non-magnetic area for geology engineering, construction, and detection activity in the mining, hydrology, railway, and construction department.

    The instrument is composed of laptop (optional), controlling case, and inclinometer probe. It adopts test data coded long distance transmission techniques, so it can transmit test data through cable accurately and reliably; It combines a high performance sensor with digital signal processing techniques, so it is in high precision and good repeatability; it can upload test data to a laptop through RS232 serial port directly, so it can show test data, plane diagram, sectional diagram, and side projection diagram clearly and intuitively, and it can save test data. If connect to a printer, it can print out test data, plane diagram, sectional diagram, side projection diagram and space trace diagram.

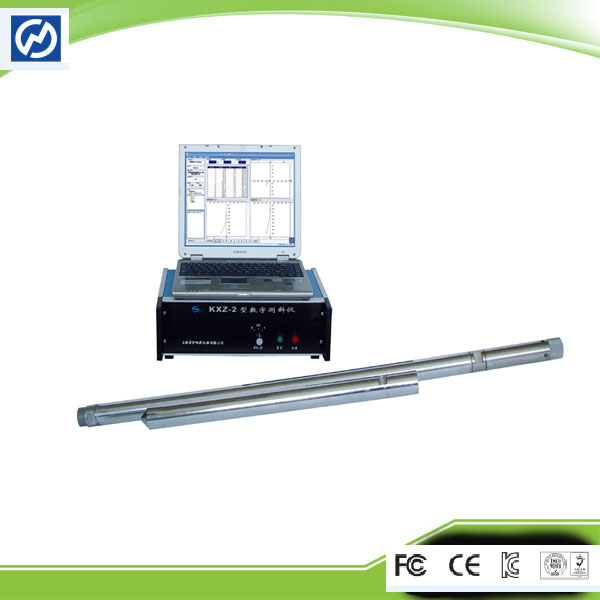

    The picture of Mechanical Inclinometer



    Main Technical Specifications

    1. Inclination measurement depth: ≤1200 m;
    2. Measurement range and error:
    (1) Dip angle: -60~60°, error is ±0.1°;
    (2) Azimuth angle: 0~360°, error is ±1.5°;
    (3) Tool face angle: 0~360°, error is ±2.0°;
    3. Measurement mode: at fixed points; depth interval and quantity of measurement points can be preset at random;
    4. Power supply: AC 220V±10%, 50 Hz;
    5. Working environment of controlling case:
    (1) Temperature: -10℃~50℃;
    (2) Relative humidity: ≤85%;
    6. Working environment of inclinometer probe:
    (1) Temperature: 0℃~55℃;
    (2) Pressure endured: ≤15MPa;
    7. Controlling case:
    (1) Size: 385×300×240 mm;
    (2) Weight: 8 kg;
    8. Inclinometer probe:
    (1) Size: Φ40×1600 mm
    (2) Weight: 7 kg;
    9. Recording mode: it can record date and time in real time, and print test data.

    Activities display of our team


    Why choose us?

    1.We have more than 6 years of developed sales chanels in many countries.


    2.Our company are highly acclaimed and favorably accepted by numerous customers and

    possessed of the right to import and export.


    3.We prominent emphasize the human concern,respect,rust in company management,

    as we as stimulate staff's sense of responsibility and the sense of mission.


    4.Inspected by the Inspection Institution of Bureau Veritas Certification.


    5.100% QC inspection Before Shippment.


    6.CE/ISO listed,competitve price.effective delivery.
