| Brand Name : | Gold |
| Model Number : | TYP-30 |
| Certification : | CE |
| Price : | 20000 |
| Delivery Time : | 10days |
| Payment Terms : | L/C T/T Western Union |
| Supply Ability : | 100 set /moth |
20-30m Depth Well Rotary Table Land Oil Drilling Rig
TPY-30 drilling machine is a type of shallow-hole drilling machine for exploration, it is suitable for drilling in soil, sand soil and medium harden rock drilling. It can be used not only in both explosion hole drilling for petroleum survey and core drilling for engineering geological exploration, but also in foundation exploration of industrial and civel buil dings, and grout hole drilling for reservoir and dam.

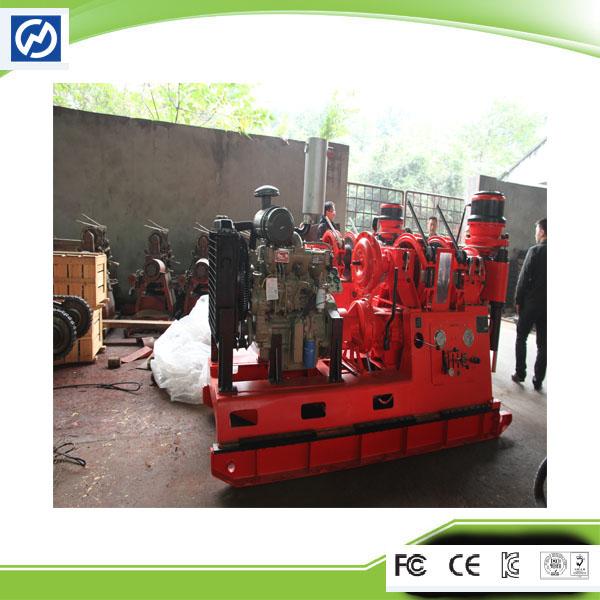

The picture of Land Oil Drilling Rig
What's the feature of our Land Oil Drilling Rig?
● Light, good detachability, easy moving, suitable for mountainous area
● Mechanical transmission, hydraulic feed, equipped with hydraulic chuck, increase drilling efficiency, reduce labour strengthness
● Hydraulic retraction to let the drill body away from the hole, easy lifting and lowering the drilling tools
● Perfect performances, simple and compact design, easy operation
● Largely powered, reasonable speed range, suitable for various drilling methods
● Equipped with light and detachable aluminium alloy derrick
What is the technical parameter ofourLand Oil Drilling Rig?
Drilling capacity | Hole dia | Φ75mm,Φ110mm | |
Depth | 25m,30m | ||
Rotation table speeds | 110;234;332 | ||
Rotation table output torque | 0.326 | ||
Max pull force | 20 | ||
Feed stroke | 350 | ||
Retraction stroke | 220 | ||
Single rope max lift force | 3.43 | ||
Hoisting speeds (the second layer) | 0.58;1.15;1.78 | ||
Oil pump | CBW-F203-AFPL | ||
Drill body Weight (excluding power unit) (kg) | 240 | ||
Overal dimensions(L*W*H) | 1270*624*890 | ||
Power unit | Diesel engine | Model | R185A |
Power(kw) | 6.25 | ||
Speed(r/min) | 2400 | ||
Electric motor | Model | Y132S1-2 | |
Power(kw) | 5.5 | ||
Speed(r/min) | 2900 | ||
What is the accessories of Land Oil Drilling Rig
Activities Display
1.We have more than6 yearsof developed sales chanels inmany countries.
2.Our company arehighly acclaimed and favorablyaccepted by numerous customers and possessed of the right to import and export.
3.We prominent emphasize the humanconcern,respect,rustin company management,as we as stimulate staff'ssense of responsibilityandthe sense of mission.
4.Inspected by the Inspection Institution ofBureau Veritas Certification.
5.100% QCinspection Before Shippment.
6.CE/FClisted,competitve price.effective delivery.
Trade Terms
1.Payment:T/T,Western Union,L/C
2. Delivery Time:within 10 week working days
3.Warranty:1 Year
4.Packing information:wooden cases with standard exporting package
Our shipping way for your option
Q1.Are you trading company or manufacturer?
We are absolutely professional manufacturer, and our factory mainly producewater well drilling rig,core drilling rig,piling rig, etc.
We provide comprehensive solution to many fields like geological survey, mining industry, electric power etc.
Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
.
Q2.Do you have after service?
Yes, we havespecial service teamwhich will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
Q3.Is there cheap shipping cost to import to our country?
A1: For small order,expresswill be best.And for bulk order,sea ship wayis best but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q4:Can we get support if we have our own market position?
A2: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
|
|
