    China Manufacturer 90 Degree Angle Range Drilling Rig for Sale in Japan

    Ask Lasest Price
    Brand Name : Gold
    Model Number : GX-1TD
    Certification : CE
    Price : 20000
    Delivery Time : 10days
    Payment Terms : L/C T/T Western Union
    Supply Ability : 100 set /moth
    • Product Details
    • Company Profile

    China Manufacturer 90 Degree Angle Range Drilling Rig for Sale in Japan

    China Manufacturer 90 Degree Angle Range Drilling Rig for Sale in Japan

    Geological drilling for railroad, highway, bridge tunnel, power station foundation, civil and industrial buildings and blasting hole etc.​

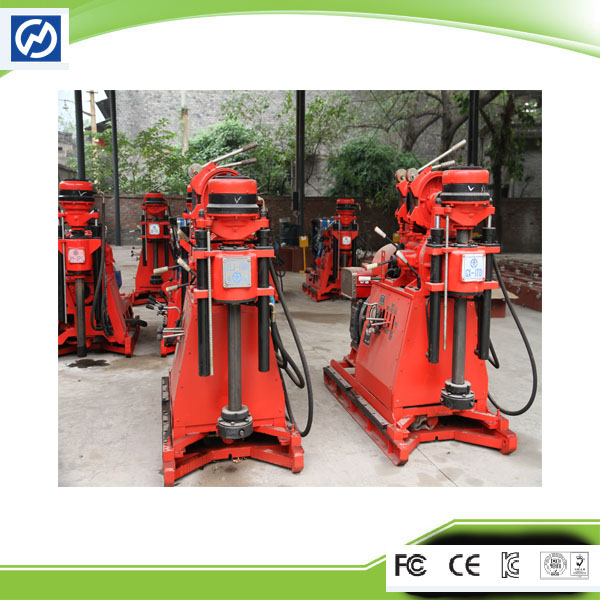

    The picture of Drilling Rig for Sale in Japan

    China Manufacturer 90 Degree Angle Range Drilling Rig for Sale in Japan


    What's the feature of our Drilling Rig for Sale in Japan?

    ◆ Spindle type, mechanical transmission, hydraulic feeding, and steel skid frame mounted

    ◆ Hydraulic retracting lets drill body away from the drill hole, in order to hoist or lower the drilling tools

    ◆ Hydraulic chuck, labor saving

    ◆ Advanced design, multi-function, compact structure, lightweight, good detachability, easy to operate

    ◆ Large-powered, reasonable range of speeds, large torque, suitable for many drilling methods

    ◆ According to user's requirements the drilling machine can be equipped with mudpump, a variety kinds of drilling tools, A-derrick etc, for client choice


    What is the technical parameter of ourDrilling Rig for Sale in Japan?


    final hole dia (mm)
    150;130;110;91;75

    drilling capacity (m)
    30;50;70;100;150

    angle rangle
    0-90°

    spindle speeds (r/min)
    90;191;360;600

    max torque (Nm)
    1000

    Max pull force (KN)
    27

    spindle stroke (mm)
    450

    max hoisting force with single line (KN)
    14.7

    Oil pump
    CB32

    Power unit

    diesel engine
    S1100A 2200r/min 11KW

    electric motor
    Y160M-4 1460r/min 11KW

    Weight (Excluding power)(kg)
    500

    overal dim(L×W×H)(mm)
    1560×620×1205

    What is the accessories of Drilling Rig for Sale in Japan?

    China Manufacturer 90 Degree Angle Range Drilling Rig for Sale in Japan


    China Manufacturer 90 Degree Angle Range Drilling Rig for Sale in Japan


    China Manufacturer 90 Degree Angle Range Drilling Rig for Sale in Japan


    Activities Display

    China Manufacturer 90 Degree Angle Range Drilling Rig for Sale in Japan


    Why choose us?

    1.We have more than6 yearsof developed sales chanels inmany countries.


    2.Our company arehighly acclaimed and favorablyaccepted by numerous customers and possessed of the right to import and export.


    3.We prominent emphasize the humanconcern,respect,rustin company management,as we as stimulate staff'ssense of responsibilityandthe sense of mission.


    4.Inspected by the Inspection Institution ofBureau Veritas Certification.


    5.100% QCinspection Before Shippment.


    6.CE/FClisted,competitve price.effective delivery.


    Trade Terms


    1.Payment:T/T,Western Union,L/C


    2. Delivery Time:within 10 week working days


    3.Warranty:1 Year


    4.Packing information:wooden cases with standard exporting package



    Our shipping way for your option

    China Manufacturer 90 Degree Angle Range Drilling Rig for Sale in Japan


    FAQ:

    Q1.Are you trading company or manufacturer?

    We are absolutely professional manufacturer, and our factory mainly producewater well drilling rig,core drilling rig,piling rig, etc.

    We provide comprehensive solution to many fields like geological survey, mining industry, electric power etc.

    Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

    .

    Q2.Do you have after service?

    Yes, we havespecial service teamwhich will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

    Q3.Is there cheap shipping cost to import to our country?

    A1: For small order,expresswill be best.And for bulk order,sea ship wayis best but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.


    Q4:Can we get support if we have our own market position?

    A2: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
