Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers

Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd
Contact Now
    Buy cheap Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers from wholesalers

    Buy cheap Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers from wholesalers
    • Buy cheap Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers from wholesalers

    Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers

    Ask Lasest Price
    Brand Name : Gold
    Model Number : GX-50
    Certification : CE
    Price : 20000
    Delivery Time : 10days
    Payment Terms : L/C T/T Western Union
    Supply Ability : 100 set /moth
    • Product Details
    • Company Profile

    Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers

    Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers

    Geological drilling for railroad, highway, bridge tunnel, foundations of power station, Civil and industrial buildings, also drilling anchoring hole and blasting hole etc.

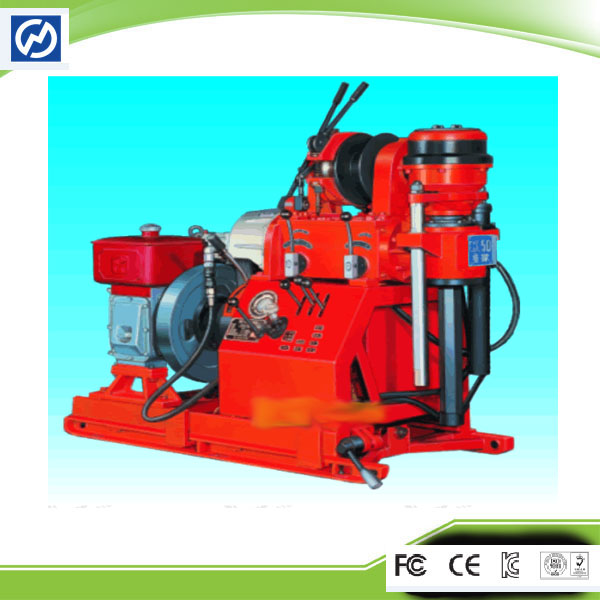

    The picture of Drilling Rig Manufacturers

    Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers


    What's the feature of ourDrilling Rig Manufacturers?

    Spindle type mechanical transmission, hydraulic feed

    Hydraulic retracting lets drill body away from the drilling hole

    Hydraulic chuck, hand-powered chuck and hand-powered cylinder chuck, they are exchangeable

    Friction hoist, percussion drilling, easy to pull and push casing if equipped with vibrator

    Advanced design, reasonable arrangement, compact structure, beautiful looking

    Light weight, good detachability, easy to operate

    Equipped with special 6mA type derrick for user ordering


    What is the technical parameter of ourDrilling Rig Manufacturers?


    final hole dia (mm)
    150;130;110;91;75

    drilling capacity (m)
    20;30;50;70;100

    angle range
    0-90°

    spindle speeds (r/min)
    99;236;378

    max torque (Nm)
    620

    spindle max pull force (KN)
    15

    spindle stroke (mm)
    400

    max hoist lift force with single rope (KN)
    10

    Oil pump
    CB3-10-CFPL
    CB3-10-CFPL gear oil pump

    Power unit

    diesel engine

    Changchai diesel 195 2000r/min 8.8KW

    electric motor
    Y130M-4;1440r/min 7.5KW

    drill body weight(Excluding power)
    360

    overal dim (L×W×H)(mm)
    1360×620×1080

    What is the accessories of Drilling Rig Manufacturers?

    Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers


    Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers


    Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers


    Activities Display

    Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers


    Why choose us?

    1.We have more than6 yearsof developed sales chanels inmany countries.


    2.Our company arehighly acclaimed and favorablyaccepted by numerous customers and possessed of the right to import and export.


    3.We prominent emphasize the humanconcern,respect,rustin company management,as we as stimulate staff'ssense of responsibilityandthe sense of mission.


    4.Inspected by the Inspection Institution ofBureau Veritas Certification.


    5.100% QCinspection Before Shippment.


    6.CE/FClisted,competitve price.effective delivery.


    Trade Terms


    1.Payment:T/T,Western Union,L/C


    2. Delivery Time:within 10 week working days


    3.Warranty:1 Year


    4.Packing information:wooden cases with standard exporting package



    Our shipping way for your option

    Used in Different Terrains Spindle Type Hydraulic Feed Drilling Rig Manufacturers


    FAQ:

    Q1.Are you trading company or manufacturer?

    We are absolutely professional manufacturer, and our factory mainly producewater well drilling rig,core drilling rig,piling rig, etc.

    We provide comprehensive solution to many fields like geological survey, mining industry, electric power etc.

    Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

    .

    Q2.Do you have after service?

    Yes, we havespecial service teamwhich will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

    Q3.Is there cheap shipping cost to import to our country?

    A1: For small order,expresswill be best.And for bulk order,sea ship wayis best but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.


    Q4:Can we get support if we have our own market position?

    A2: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
